The Art and Science of Powering Servo Motors: A Comprehensive Guide

Understanding the Basics of Servo Motor Power

Servo motors are the unsung heroes of precision motion. From robotic arms assembling cars to camera gimbals capturing cinematic footage, these compact devices translate electrical signals into mechanical magic. But here’s the catch: even the most advanced servo motor is useless if you don’t power it right. Let’s demystify the process.

Why Power Matters More Than You Think

Servo motors aren’t like their DC motor cousins. They’re high-maintenance divas that demand clean, stable power. Underpower them, and they’ll stutter or stall. Overpower them, and you’ll smell the distinct aroma of fried circuitry. The sweet spot? It’s a dance between voltage, current, and control signals.

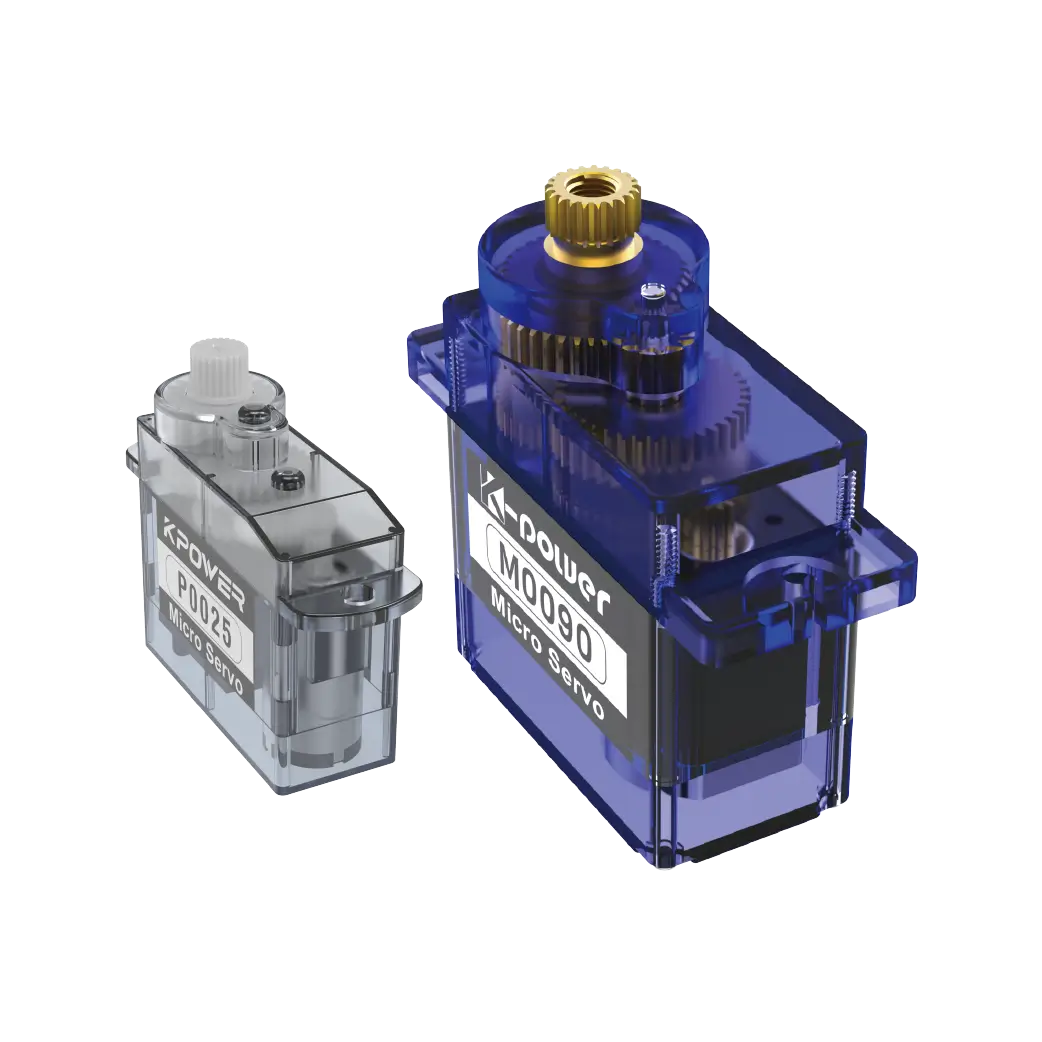

Voltage: The Goldilocks Zone Most hobby servos (think SG90 or MG996R) thrive at 4.8V–6V. Industrial servos? They’ll laugh at anything below 12V. Check your motor’s datasheet—this isn’t the time for guesswork. Pro tip: A adjustable benchtop power supply is your best friend for testing.

Current: The Silent Killer Servos sip current when idle but gulp it under load. A tiny 9g servo might draw 0.5A when stressed. Multiply that across a hexapod robot’s 18 servos, and suddenly you’re pulling 9A. Always overspec your power supply by 20%—brownouts are embarrassing mid-demo.

The Power Trifecta: Source, Wires, Connectors

Batteries vs. Wall Adapters Lipos: Lightweight and punchy, but need monitoring to avoid over-discharge. Alkaline AAs: Safe but sag under load. Great for prototypes, terrible for performance. Wall adapters: Reliable, but ensure they’re regulated. That $5 “12V” adapter from eBay? Probably outputs 14V when unloaded.

Wire Gauge Matters Thin wires are resistors in disguise. For 5V/2A setups, 22 AWG works. Pushing 6V/5A? Upgrade to 18 AWG. No one wants a servo twitch caused by voltage drop.

Connector Conundrums JST, XT30, Deans—choose connectors rated for your current. Soldering? Keep joints clean. Cold solder joints create resistance, which creates heat, which creates…magic smoke.

The Control Signal: More Than Just PWM

While power pins feed the muscle, the signal pin is the brain. But here’s a myth-buster: dirty power affects signal integrity. If your PWM signal jitters, check for:

Shared ground loops (isolate logic and motor grounds) Voltage spikes from inductive loads (add flyback diodes) EMI from nearby motors (twist signal and ground wires)

Real-World Fail (and How to Avoid It)

A maker once powered a 6V servo arm with a 5V Arduino USB port. Result? The arm moved like it was stuck in molasses. Lesson: Separate logic and motor power. Use a dedicated BEC (Battery Eliminator Circuit) or buck converter.

Advanced Techniques and Pro-Level Hacks

You’ve mastered the basics. Now let’s turn you into a servo power ninja.

Voltage Regulation: Beyond the Basics

Linear vs. Switching Regulators Linear (e.g., LM7805): Simple but inefficient. Drops excess voltage as heat. Fine for low-current setups. Switching (e.g., LM2596): 90%+ efficient. Essential for high-power systems. Watch out for noise—add LC filters if your servo gets jittery. Capacitors: Your Secret Weapon Place a 100µF electrolytic capacitor across the servo’s power pins. It acts like a mini battery, smoothing out current spikes during sudden movements. For critical apps (like drone gimbals), add a 10µF ceramic cap in parallel.

Multi-Servo Systems: Avoiding the Power Apocalypse

Running 10 servos off one supply? You’ll hit two walls:

Current Sharing Don’t daisy-chain power through servo headers. Use a power distribution board with thick traces. Star topology is king.

Voltage Sag Heavy loads cause voltage drops, which reset microcontrollers. Fix:

Separate power for logic (e.g., Arduino) and motors Use a diode (0.7V drop) to isolate logic power from motor noise

Noise Reduction: Because Servos Hate Drama

Servos + cheap power supplies = jitter city. Solutions:

Ferrite Beads: Clip them onto servo cables near the connector. Twisted Pair Wiring: For signal and ground lines. Optoisolators: Nuclear option for electrically noisy environments (e.g., CNC machines).

Case Study: The Coffee-Bot astrophe

A startup built a robotic barista with 12 servos. During testing, the arm spazzed out, spraying latte art on the CEO. Root cause? Shared ground between Raspberry Pi and motor driver. Fix: Added optoisolators and a 10A Mean Well PSU.

Future-Proofing: Smart Power Management

Current Sensing Embed an INA219 chip to monitor real-time current draw. Detect stalls before they burn out gears.

Dynamic Voltage Scaling Use a microcontroller to adjust voltage based on load. Light work? 4.8V. Heavy lifting? Ramp to 6V.

Energy Recapture Regenerative drives (like those in industrial servos) feed braking energy back into the system. Your move, Tesla.

Final Word: Respect the Servo

These tiny titans bridge the digital and physical worlds. Power them wisely, and they’ll dance for you. Cut corners, and they’ll fail spectacularly. Now go forth—your robot army awaits.
