Mastering Precision: A Beginner’s Guide to Harnessing Servo Motors in Your Projects

The Magic Behind Servo Motors – What Makes Them Tick

If you’ve ever marveled at a robotic arm painting a masterpiece, a drone adjusting its propellers mid-flight, or even a self-closing toilet seat (yes, those exist), you’ve witnessed the quiet genius of servo motors. These compact powerhouses are the unsung heroes of precision motion, turning abstract commands into exact physical movements. But how do they work, and why should you care? Let’s break it down.

Servo Motors 101: More Than Just a Motor

Unlike standard motors that spin freely, servo motors are designed for control. They combine three key components:

A DC motor (the muscle) A potentiometer or encoder (the brain’s feedback system) Control circuitry (the translator between commands and action)

This trio allows servos to rotate to specific angles and hold positions with remarkable accuracy. Think of them as the overachievers of the motor world—they don’t just move; they calculate.

Why Servos Dominate Precision Tasks

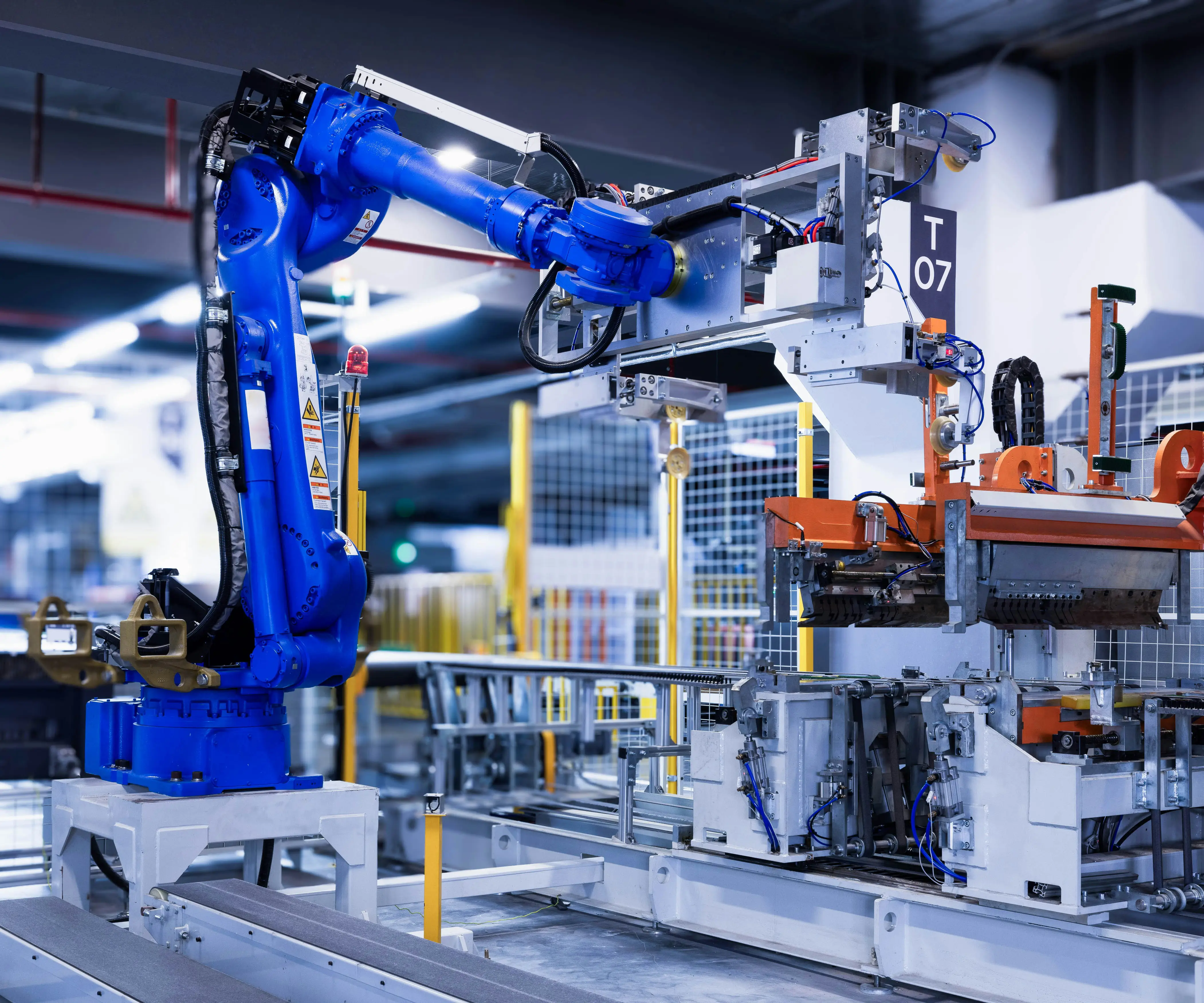

From industrial robots assembling cars to hobbyists building animatronic Halloween decorations, servo motors shine in scenarios where exact positioning matters. Here’s why:

Closed-loop feedback: The built-in sensor constantly reports the motor’s position to the control board, making real-time adjustments. High torque at low speeds: Perfect for lifting, pushing, or rotating objects without stalling. Compact size: Even micro servos (small enough to fit on a fingertip) pack a punch.

Types of Servos: Picking Your Weapon

Not all servos are created equal. Your project’s needs dictate which type to use:

Standard servos (180° rotation): Ideal for steering RC cars or moving robot joints. Continuous rotation servos: Act like gearmotors with speed control—great for conveyor belts. Linear servos: Convert rotational motion to straight-line movement, useful in 3D printers. Digital vs. Analog: Digital servos process signals faster for competitive robotics; analog ones are cheaper for basic tasks.

Real-World Applications: Beyond the Lab

Servos aren’t just for engineers in white coats. Here’s how they’re used in everyday creativity:

Home automation: Motorized blinds that adjust with the sun. Cinematography: Camera sliders for buttery-smooth film shots. Gardening: Automated plant-watering systems with adjustable spray angles.

The Language of Servos: PWM Signals Demystified

Servos communicate using Pulse Width Modulation (PWM). In simple terms:

A pulse’s width (usually 1–2 milliseconds) tells the servo what angle to hold. A 1.5ms pulse typically centers the motor (0° for standard servos). Arduino’s Servo.h library or Raspberry Pi’s GPIO pins can generate these signals effortlessly.

Common Pitfalls (and How to Avoid Them)

Newcomers often trip over these hurdles:

Overloading the servo: Exceeding torque limits causes jitter or burnout. Ignoring voltage requirements: A 6V servo fried by a 9V battery is a sad sight. Software glitches: Always initialize servos in code before sending commands.

From Theory to Action – Building Your First Servo-Powered Project

Now that you understand the why, let’s tackle the how. Whether you’re automating a cat feeder or building a weather-tracking satellite dish, these steps will turn ideas into motion.

Step 1: Wiring Basics – Don’t Cross the Streams

Servos typically have three wires:

Red (VCC): Connect to a 5–6V power source. Black/Brown (GND): Link to ground. Yellow/Orange (Signal): Attach to a PWM-capable pin on your microcontroller.

Pro tip: Use a separate power supply for servos in multi-motor projects to prevent voltage drops.

Step 2: Coding Your First Movement

Let’s program a 180° servo using Arduino: ```cpp

include

Servo myServo;

void setup() { myServo.attach(9); // Connect signal wire to pin 9 }

void loop() { myServo.write(0); // Rotate to 0° delay(1000); myServo.write(90); // Center position delay(1000); myServo.write(180); // Full rotation delay(1000); }

Upload this, and watch your servo dance. For Raspberry Pi, Python’s `gpiozero` library offers similar simplicity. ### Step 3: Calibration – Because Perfection Takes Practice Factory-default servos might not align perfectly. Calibrate them by: 1. Sending a 90° command. 2. Loosening the servo horn screw. 3. Manually adjusting the horn to the desired midpoint. ### Step 4: Mounting Hacks – Stability is Sexy Servos vibrate, so secure them with: - 3D-printed brackets (Thingiverse has countless free designs). - Double-sided foam tape for quick prototypes. - Zip ties + hot glue for the MacGyver enthusiasts. ### Step 5: Advanced Control – Beyond Basic Angles For ultra-smooth motion, ditch `myServo.write()` and use microseconds control:

cpp myServo.writeMicroseconds(1500); // 1.5ms pulse = 90° ``` This unlocks finer adjustments, crucial for camera gimbals or robotic prosthetics.

Troubleshooting: When Your Servo Misbehaves

Jittering: Add a capacitor (10µF) between VCC and GND. Overheating: Check for mechanical resistance (e.g., a jammed gear). No movement: Verify wiring—90% of issues are loose connections.

Pushing Boundaries: Creative Project Ideas

Robotic bartender: Mix drinks with servos controlling pumps and dispensers. Smart mirror: Motorized panels that reveal hidden compartments. Interactive art: Sculptures that react to audience movement.

The Future of Servos: What’s Next?

Emerging trends include:

IoT integration: Servos controlled via cloud platforms like AWS IoT. AI-driven control: Motors that “learn” optimal movements using TensorFlow Lite. Eco designs: Solar-powered servos for outdoor automation.

Final Thought Servo motors are your ticket to bridging the digital and physical worlds. They’re not just components—they’re collaborators, waiting to translate your code into tangible magic. So grab a microcontroller, hack a servo, and start building. The only limit is your willingness to experiment (and maybe your soldering skills).
