Mastering Servo Motors: Your Step-by-Step Guide to Precision Control

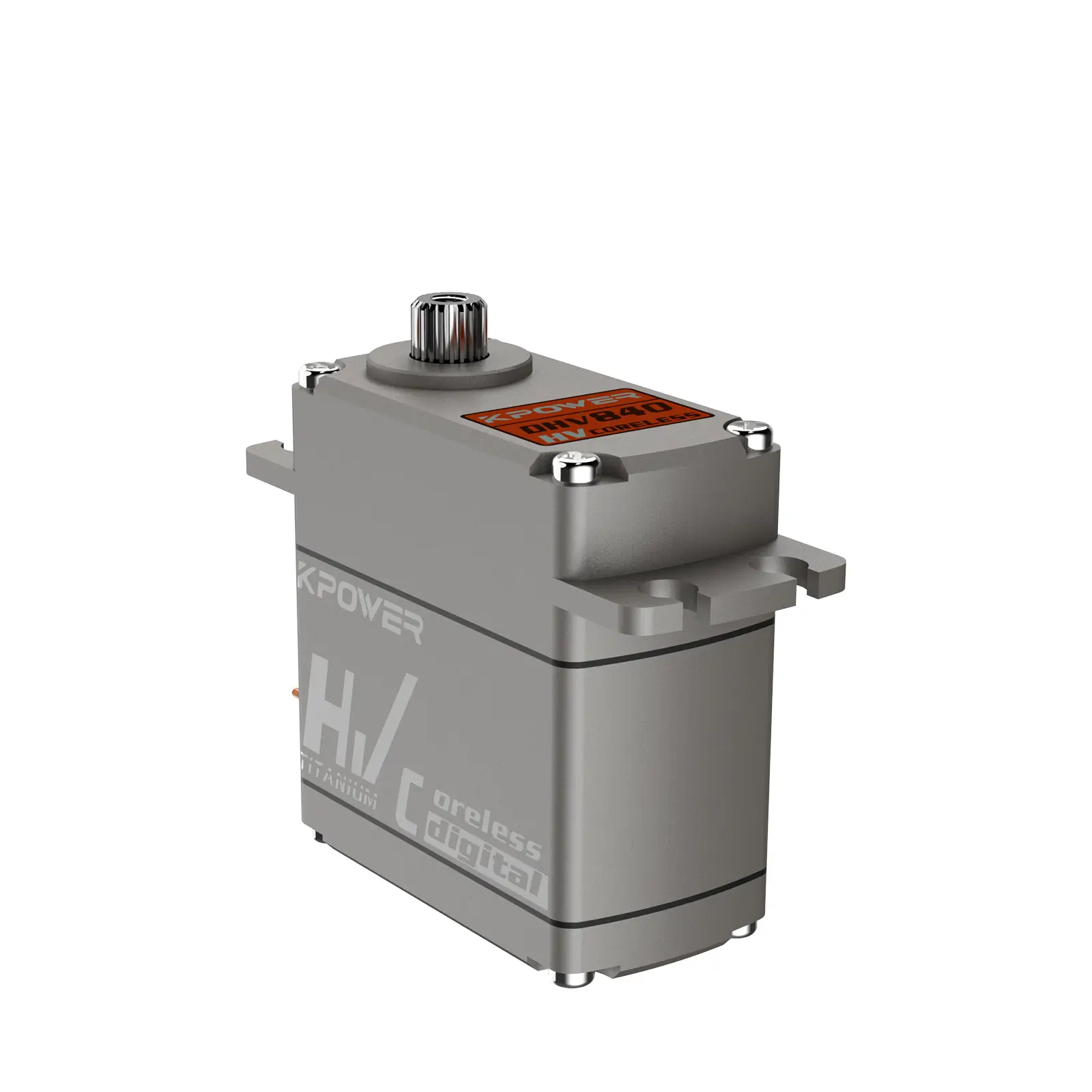

The Basics of Servo Motors and Hardware Setup

Servo motors are the unsung heroes of precision motion – the quiet achievers in robotics, RC cars, and industrial automation. Unlike regular motors that spin freely, servos rotate to specific angles, making them ideal for tasks requiring surgical accuracy. Let’s demystify these devices and turn you into a servo whisperer.

What Makes a Servo Tick?

Inside every servo motor, you’ll find:

A DC motor (the muscle) A potentiometer (the internal GPS) A control circuit (the brain) Gears (the translators)

This combo creates a closed-loop system. When you send a position command, the potentiometer reports the current angle to the control circuit, which adjusts the motor until the desired position matches reality. It’s like having a built-in quality control inspector.

Tools You’ll Need

Servo motor (MG90S or SG90 are great starters) Microcontroller (Arduino Uno or Raspberry Pi Pico) Jumper wires (male-to-male and male-to-female) Breadboard (for temporary connections) 5V-6V power supply (separate from microcontroller for heavy loads) Multimeter (optional but recommended)

The Wiring Blueprint

For Arduino Enthusiasts:

Signal Wire (Yellow/Orange): Connect to digital pin 9 Power (Red): 5V output on Arduino Ground (Brown/Black): GND pin

Pro Tip: For high-torque applications, use an external power supply. Connect its positive to servo red wire and negative to both Arduino GND and servo ground.

Raspberry Pi Setup:

Signal: GPIO 18 (PWM-capable pin) Power: 5V pin (Physical pin 2) Ground: GND pin (Physical pin 6)

Caution: Raspberry Pi’s 5V pins aren’t regulated. For continuous use, consider a dedicated 5V regulator.

Avoiding Common Pitfalls

Brownout Blues: Servos drawing too much current? Your Arduino might reset. Use a capacitor (100µF) across power lines. Jittery Movement: Add a 0.1µF ceramic capacitor between signal and ground. The 180° Myth: Not all servos rotate 180° – check specs! Modifications exist but void warranties.

Real-World Analogy: Think of wiring a servo like connecting speakers. The power supply is your amplifier, the ground is your common reference, and the signal wire is the audio cable carrying precise instructions.

Programming Magic and Advanced Techniques

With hardware ready, let’s breathe life into your servo. Whether you’re coding in Arduino’s C++ or Python for Raspberry Pi, the principles remain similar – we’re essentially sending timed pulses to dictate position.

Arduino Code Breakdown

```cpp

include

Servo myServo;

void setup() { myServo.attach(9); // Pin declaration }

void loop() { myServo.write(0); // 0° position delay(1000); myServo.write(90); // Neutral position delay(1000); myServo.write(180); // Full sweep delay(1000); }

*Under the Hood:* The Servo library generates PWM signals where pulse width determines position: - 1ms pulse = 0° - 1.5ms pulse = 90° - 2ms pulse = 180° ### Raspberry Pi Python Script

python import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM) GPIO.setup(18, GPIO.OUT)

pwm = GPIO.PWM(18, 50) # 50Hz frequency pwm.start(0)

def set_angle(angle): duty = angle / 18 + 2 GPIO.output(18, True) pwm.ChangeDutyCycle(duty) time.sleep(1) GPIO.output(18, False) pwm.ChangeDutyCycle(0)

try: while True: setangle(0) setangle(90) set_angle(180) except KeyboardInterrupt: pwm.stop() GPIO.cleanup()

*Why 50Hz?* This frequency (20ms period) matches standard servo specifications. The duty cycle calculation converts angles to pulse widths within this period. ### Advanced Tactics 1. Smooth Sweeps:

cpp for (int pos = 0; pos <= 180; pos += 1) { myServo.write(pos); delay(15); } ``` Gradual movement prevents mechanical stress.

Multiple Servo Control: Use PCA9685 PWM driver for controlling up to 16 servos without PWM pin limitations.

Feedback Loops: Implement PID control using external potentiometers for industrial-grade precision.

Troubleshooting Table

Symptom Likely Culprit Fix No movement Power connection Check voltage with multimeter Erratic behavior Signal interference Shorter wires/ferrite bead Overheating Mechanical blockage Reduce load/lubricate gears Limited rotation Software limits Adjust write() parameters

From Hobby to Real-World Applications

Robotic Arms: Combine 4-6 servos for pick-and-place systems Camera Gimbals: Create stabilized platforms using 3-axis servo control Smart Agriculture: Automate greenhouse ventilation flaps Home Automation: Motorized blinds/security camera mounts

Pro Tip: In industrial settings, use MODBUS or CAN bus communication with smart servos for networked control systems.

The Future of Servos

Brushless DC servos and harmonic drive systems are pushing torque densities to new heights. With IoT integration, modern servos can self-report wear-and-tear using machine learning algorithms – predictive maintenance before failures occur.

Your journey doesn’t end here. Experiment with force feedback implementations, explore ROS (Robot Operating System) integration, or dive into servo-driven CNC designs. Remember: every complex robot you’ve ever admired started with someone connecting their first servo. What will your creation become?
