Mastering Arduino Servo Speed Control: A Step-by-Step Guide to Smooth Motion Projects

Understanding Servo Motors and Basic Speed Control

Introduction to Servo Motors

Servo motors are the unsung heroes of robotics and automation. Unlike standard DC motors, these compact devices offer precise angular control, making them ideal for applications like robotic arms, camera gimbals, and automated door systems. But what happens when you need more than just positional accuracy? Enter servo speed control – the art of making these motors move smoothly rather than snapping to their target positions like overenthusiastic soldiers.

Why Control Servo Speed?

While servos naturally jump to their commanded positions at maximum speed, many projects demand finesse:

Robotic movements mimicking human-like grace Camera panning for cinematic shots Interactive art installations requiring fluid motion Speed control transforms jerky servo action into something elegant and purposeful.

Tools You’ll Need

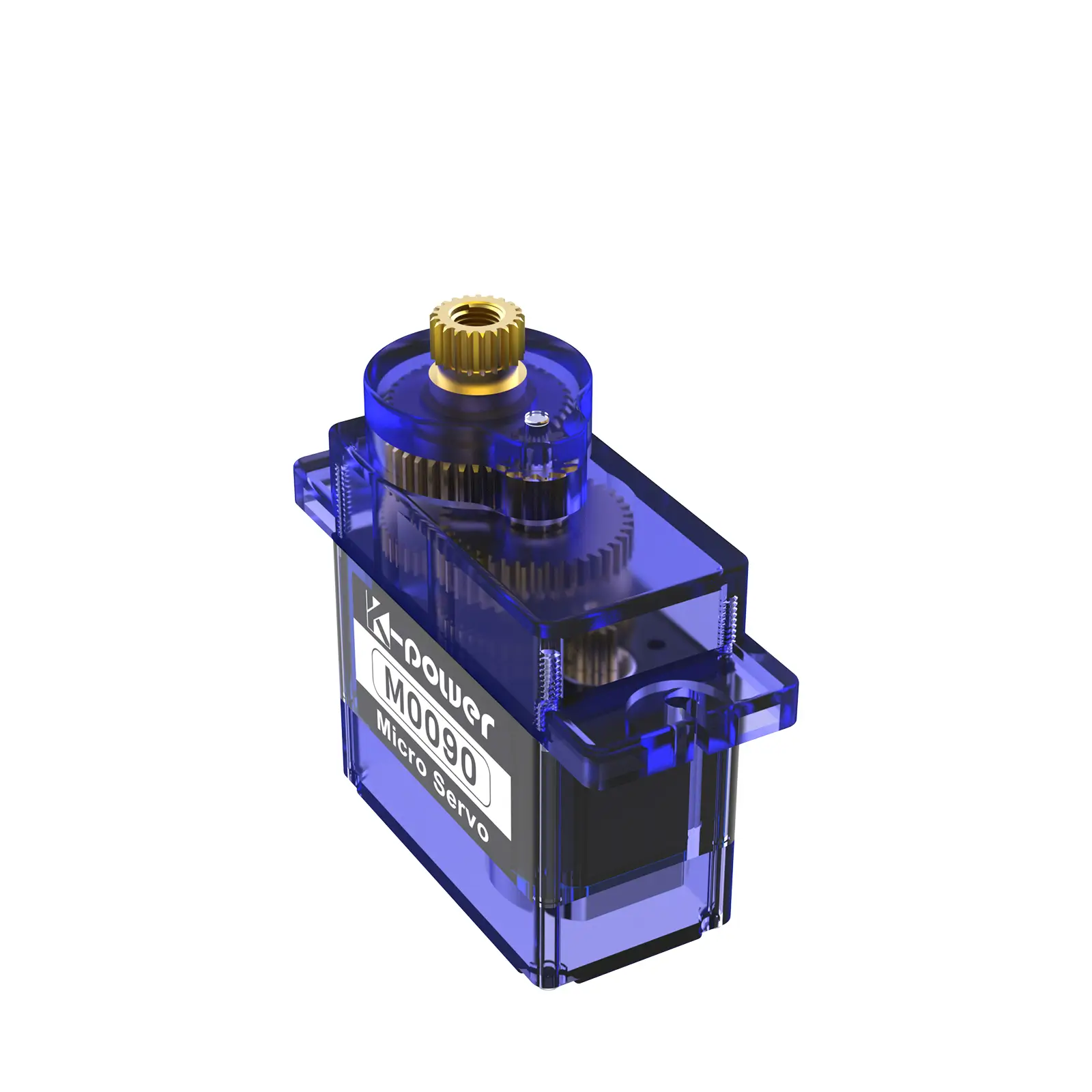

Arduino Uno/Nano ($12–$25) SG90 Micro Servo ($3–$6) 10kΩ Potentiometer ($0.50) Jumper wires Breadboard

Basic Speed Control: The Delay Method

Let’s start with a simple approach using Arduino’s built-in Servo library.

Wiring Setup:

Servo red wire → 5V Servo brown wire → GND Servo yellow wire → Digital Pin 9

Code Example: ```arduino

include

Servo myservo; int pos = 0;

void setup() { myservo.attach(9); }

void loop() { for (pos = 0; pos <= 180; pos += 1) { myservo.write(pos); delay(20); // Speed control via delay } for (pos = 180; pos >= 0; pos -= 1) { myservo.write(pos); delay(20); } }

#### How It Works The `delay(20)` creates a 20ms pause between each degree movement. Lower delay values mean faster motion: - `delay(50)` → Slow, deliberate movement - `delay(5)` → Rapid position changes Limitations: 1. The Arduino can’t perform other tasks during `delay()` 2. Speed isn’t dynamically adjustable 3. Jerky transitions between directions #### The Physics Behind the Movement Servos use pulse-width modulation (PWM) for control. A 1.5ms pulse centers the servo, while: - 1.0ms → 0 degrees - 2.0ms → 180 degrees By gradually changing these pulse durations, we simulate speed control. #### Real-World Testing When running this code, you’ll notice: - The servo moves at a consistent pace - Direction changes cause brief pauses - Power supply quality affects smoothness (use a capacitor if needed) In Part 2, we’ll explore advanced non-blocking techniques and dynamic speed adjustment using potentiometers! --- ### Part 2: Advanced Speed Control and Real-Time Adjustment #### Overcoming Delay Limitations While our initial approach works, the `delay()` function freezes the Arduino. For complex projects needing simultaneous sensor reading or wireless communication, we need a better solution. #### Non-Blocking Code with millis() Arduino’s `millis()` function tracks elapsed time without pausing execution. Improved Code Structure:

arduino

include

Servo myservo; unsigned long previousMillis = 0; int pos = 0; int interval = 20; // Time between movements

void setup() { myservo.attach(9); }

void loop() { unsigned long currentMillis = millis();

if (currentMillis - previousMillis >= interval) { previousMillis = currentMillis;

if (pos <= 180) { myservo.write(pos); pos++; } else { pos = 0; }

}

// Add other tasks here! }

#### Key Advantages: 1. The Arduino can handle multiple operations 2. Speed can be changed dynamically 3. Smoother direction reversal #### Adding Real-Time Speed Control Let’s integrate a potentiometer for live speed adjustments. Enhanced Wiring: - Potentiometer outer pins → 5V and GND - Middle pin → Analog A0 Modified Code:

arduino

include

Servo myservo; unsigned long previousMillis = 0; int pos = 0; int potPin = A0;

void setup() { myservo.attach(9); }

void loop() { int speedVal = analogRead(potPin); int interval = map(speedVal, 0, 1023, 5, 100);

unsigned long currentMillis = millis();

if (currentMillis - previousMillis >= interval) { previousMillis = currentMillis;

if (pos <= 180) { myservo.write(pos); pos++; } else { pos = 0; }

} } ```

How the Potentiometer Works

Turning the knob changes the analog input (0–1023) map() converts this to a 5–100ms interval range Faster rotation → Lower interval → Quicker servo movement

Pro Tips for Smooth Operation

Debounce Transitions: Add easing algorithms for organic motion Power Management: Use external 6V supply for multiple servos Gear Protection: Avoid forcing servos beyond mechanical limits

Applications in Action

Interactive Sculptures: Create kinetic art with visitor-controlled speed Camera Sliders: Achieve cinematic panning shots Educational Robots: Teach physics through programmable motion

Troubleshooting Common Issues

Problem: Servo jitters or overheats Solution:

Add a 100µF capacitor across power pins Ensure code isn’t sending rapid conflicting commands

Problem: Limited rotation range Solution: Modify servo mechanically or use continuous rotation servos

Next-Level Experimentation

Combine with ultrasonic sensors for speed-by-proximity effects Implement Bluetooth control using HC-05 modules Create choreographed multi-servo movements

Conclusion

Mastering servo speed control opens doors to professional-grade projects. Whether you’re building a mood-controlled clock or an animatronic creature, these techniques bring your creations to life with personality and purpose. Remember: the difference between a good project and a great one often lies in the subtlety of movement.

Now power up that Arduino – your smooth-motion masterpiece awaits! 🚀
